Key Features

• 200 and 300dpi models
• 150mm/sec print speed (200dpi)
• 102mm/sec print speed (300dpi)
• 108/106mm print width (200/300dpi)
• 300m ribbon length
• Free software
• USB, serial, parallel and Ethernet interfaces (WiFi optional)

Downloads

• EZPi Series Brochure
• RWR External Rewinder Brochure
• NiceLabel Range Overview

Manuals

• Quick Start Guide
• User Manual
• EZPL Programming Language
• External Unwinder Guide
• Network Setup Guide

Drivers

• Windows 2000, XP, Vista, 7, Server 2003 & Server 2008
• Linux Umbutu 9.04 & 9.10

Software

• NiceLabel SE (29Mb)

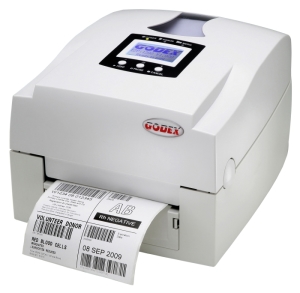

High Performance Desktop Printer Range

EZPi series printers provide high level features normally only found in high price printers but in a compact light industrial printer range. A choice of 200 and 300 dpi resolution models are available and both can print in either thermal transfer (with ribbon) or direct thermal (without ribbon) modes.

For long printing runs optional external unwinder and rewinder units allow roll sizes up to 200mm diameter to be printed. In thermal transfer print mode, standard 300m long ribbons are used compared to 91m ribbons used with many competetive models.

Unlike other light-industrial printers, the EZPi series has a built-in display with an easy-to-use operator interface allowing the user to easily monitor and control printing.

All EZPi printers come as standard with serial, USB, parallel and Ethernet ports with WiFi optional.

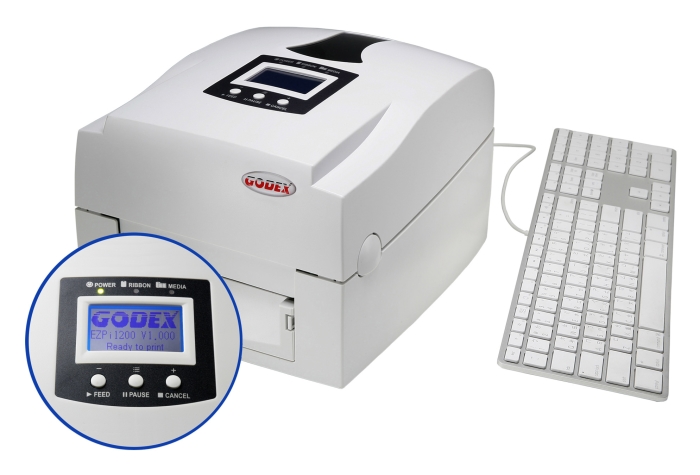

For stand-alone operation, EXPi printers have a Compact Flash slot and PS2 keyboard connector allowing label designs to be created on a PC and downloaded to an on-board Compact Flash card. The PC may then be disconnected and label designs selected using the keyboard and built in display. Variable data such as batch codes can be entered via the keyboard.

Twin sensor technology is included as standard. Die cut labels can bebe detected with a transmissive gap sensor whilst tags or clear labels can be detected with a reflective 'eye mark' sensor.

Options include cutter and label dispenser modules.

NiceLabel SE label design software is included free with all Martek printers for basic label printing requirements. For more advanced requirements, NiceLabel Express, Pro and Suite are also available. Click here for more details of the NiceLabel range.

Image Gallery

Click on image to enlarge

External Label Unwinder / Stand Video
