United Barcode Systems







UBS MR2 Ink Jet Printer


Key Features

  • 36 and 70mm print height models
  • Text, graphics, barcodes and 2D codes
  • Oil-based ink for minimal maintenance
  • Up to 180 x 720dpi resolution
  • Up to 110m/min printing speed
  • 5.7" built-in colour touch-screen



Portable inkjet printers

Considered portable inkjet? Click here for details

High-resolution inkjet printer range

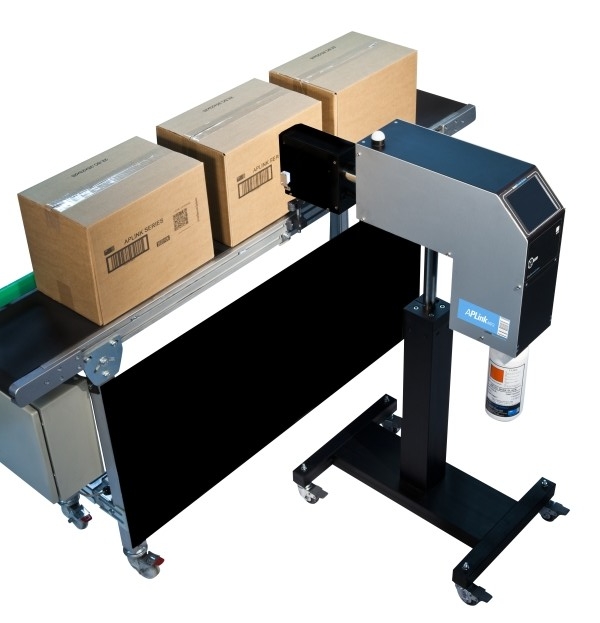

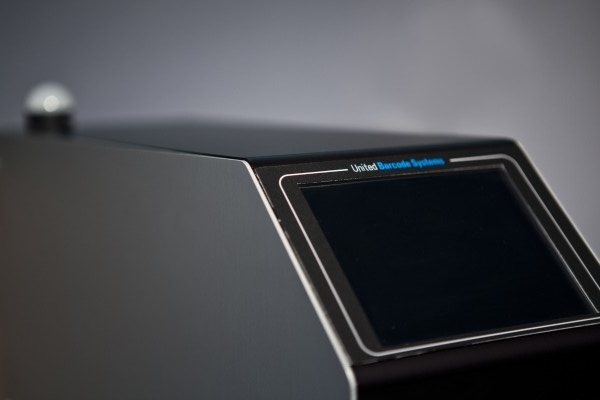

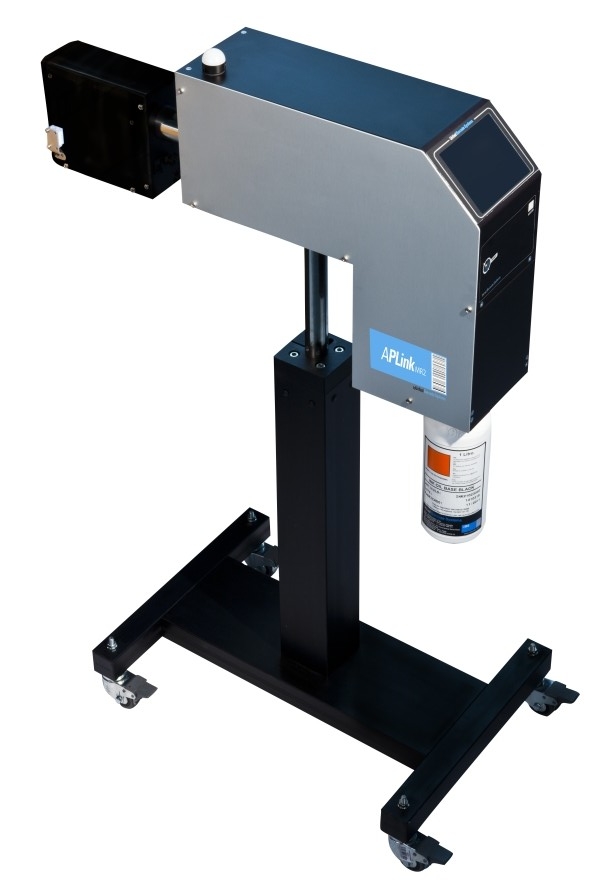

The United Barcode Systems (UBS) APLINK MR2 system is a high-resolution inkjet printer for printing text, graphics barcodes and 2D codes onto porous surfaces. The built-in 5.7" colour touch-screen makes managing printing extremely simple.

Two models are available with 36 and 70mm print heights, both capable of printing at resolutions up to 180 x 720 dpi and at line speeds up to 110m/min (depending on resolution).

Piezoelectric printhead technology is used with oil-based inks for maximum reliability and minimum environmental impact - no solvents or detergents are required

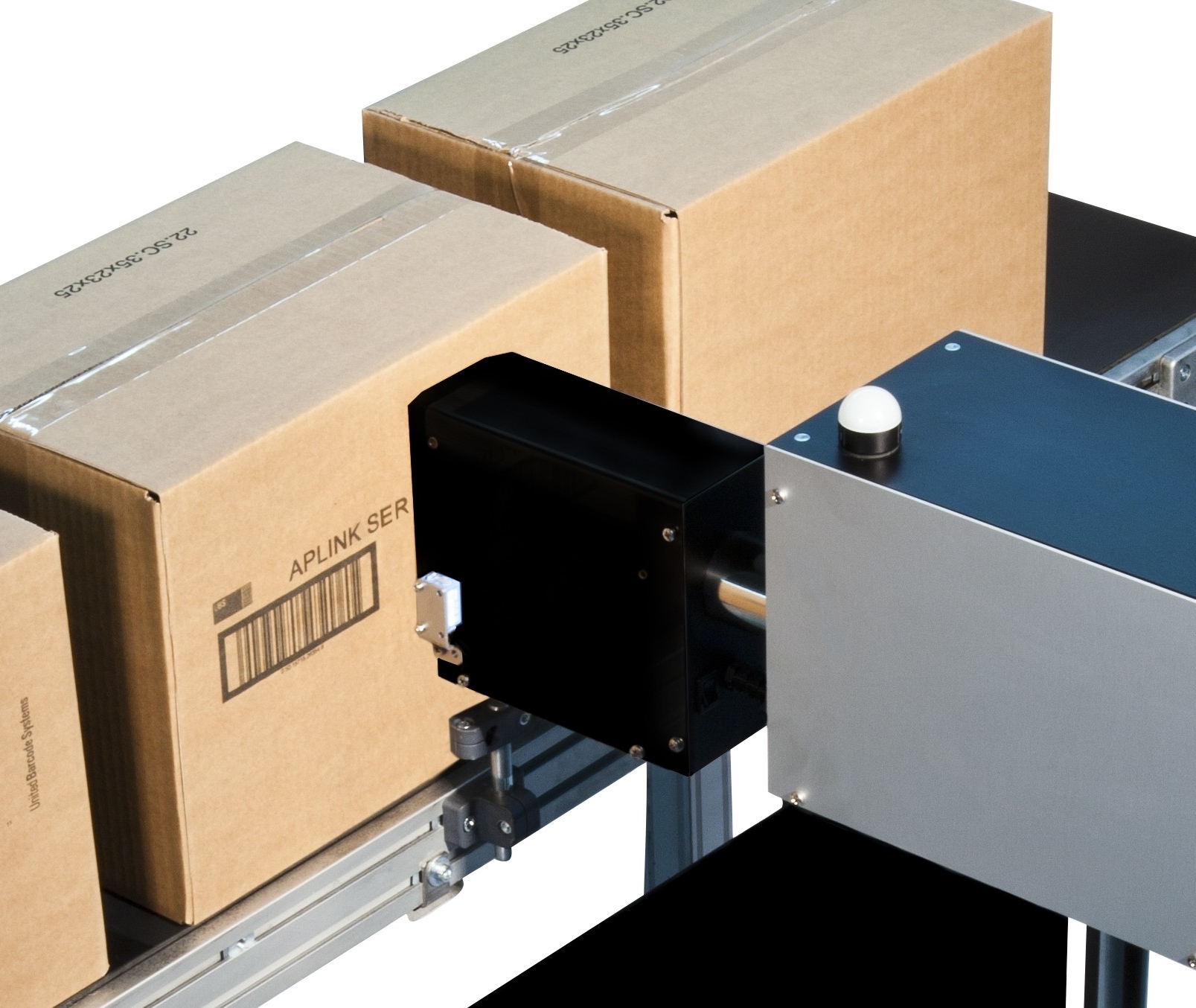

Versions are available with inline printhead connection (as shown opposite), 90 degree printhead connection to minimise the system's footprint, downward printing and an umbilical printhead can be used for installation in tight spaces.

Software options include UBS Code and Codesoft allowing easy access to external databases and ERP systems. Ethernet, USB and WiFi ports ensure the system can be easily interfaced to host systems and printing automated from external devices.

Image Gallery

Click on image to enlarge


Related Products

UBS APLINK Dual MR Inkjet System

UBS APLINK MR-1400 Inkjet System

UBS APLINK UV2 Inkjet System
