UBS APLINK Dual inkjet printer


Key Features

  • Two printheads from one controller
  • 36 and 70mm print height models
  • Text, graphics, barcodes and 2D codes
  • Oil-based ink for minimal maintenance
  • Up to 180 x 720dpi resolution
  • 8" colour touch-screen controller




Portable inkjet printers

Considered portable inkjet? Click here for details

High-resolution dual printhead inkjet printer range

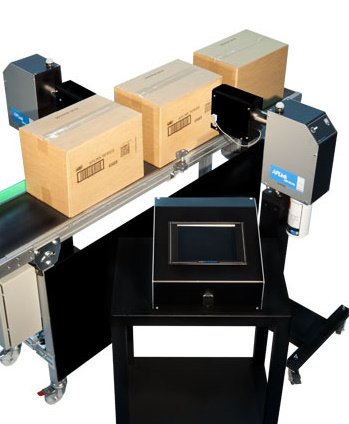

The United Barcode Systems (UBS) APLINK DUAL MR system is a dual printhead high-resolution inkjet printer for printing text, graphics barcodes and 2D codes onto porous surfaces.

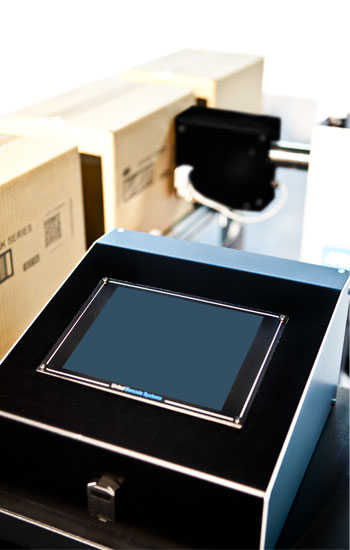

Two models are available with 36 and 70mm print heights, both capable of printing at resolutions up to 180 x 720 dpi. Printheads may be installed on the same production line or on independent lines allowing print possibilities such as printing opposite sides of cartons, side and top, side and end (after turning) and printing on two completely independent production lines. The powerful 8" colour touch-screen controller enables easy monitoring and control of printing.

Piezoelectric printhead technology is used with oil-based inks for maximum reliability and minimum environmental impact - no solvents or detergents are required

Versions are available with inline printhead connection (as shown opposite), 90 degree printhead connection to minimise the system's footprint, downward printing and umbilical printheads can be used for installation in tight spaces.

Software options include UBS Code and Codesoft allowing easy access to external databases and ERP systems. Ethernet, USB and WiFi ports ensure the system can be easily interfaced to host systems and printing automated from external devices.
